Products >> Fan coil >>

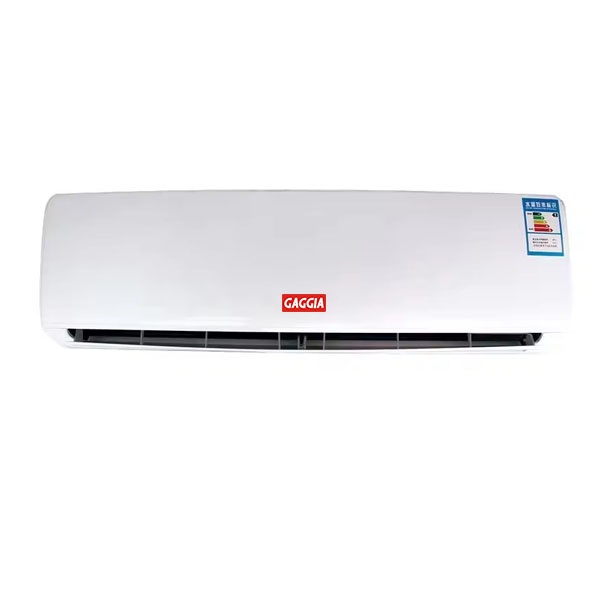

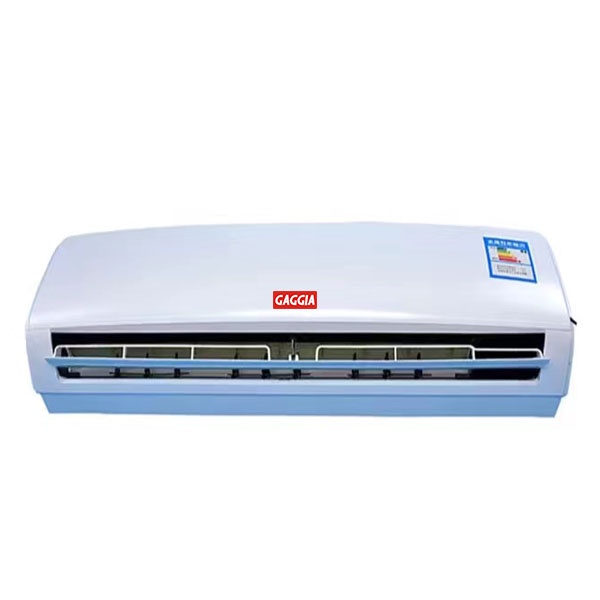

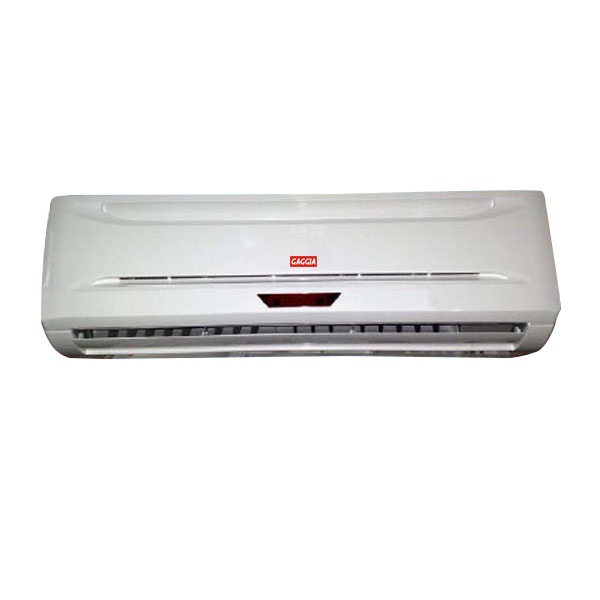

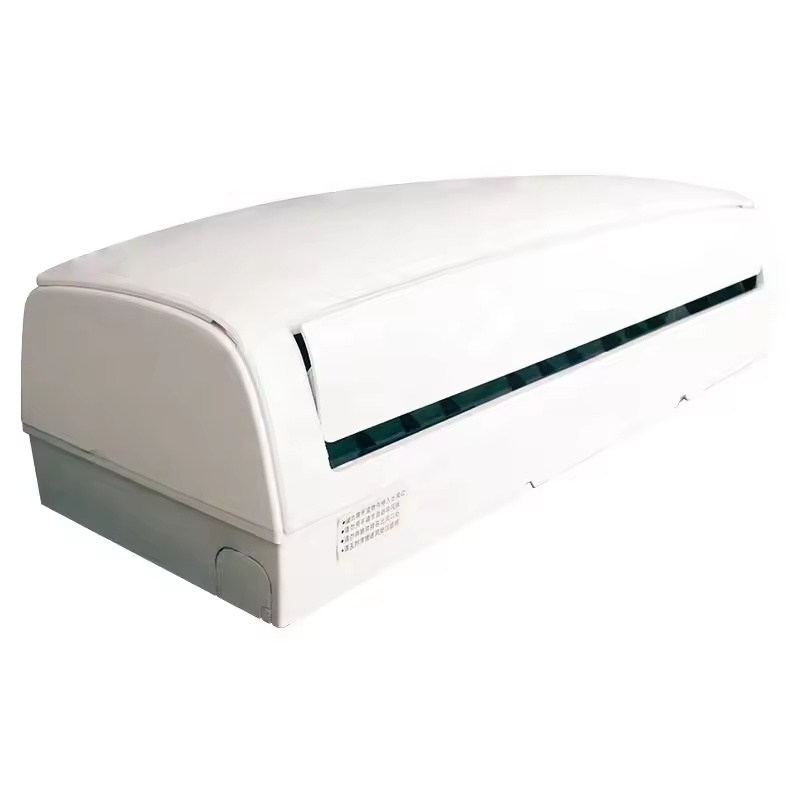

Wall Mounted Fan Coil
- Product No.:GAG-3.5FCU/5.0FCU

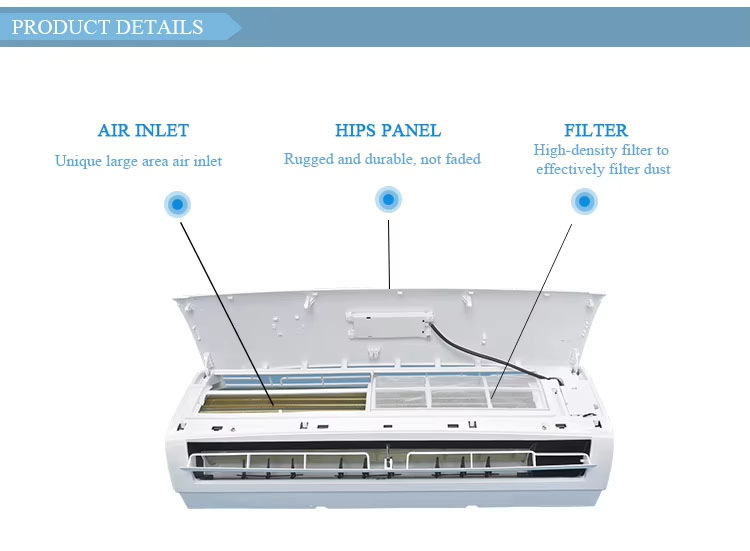

Wall mounted fan coil features
1. The vertical fan coil is suitable for hotel or home decoration.
2. The fan coil has a beautiful design and can be well matched with
the overall decoration style.

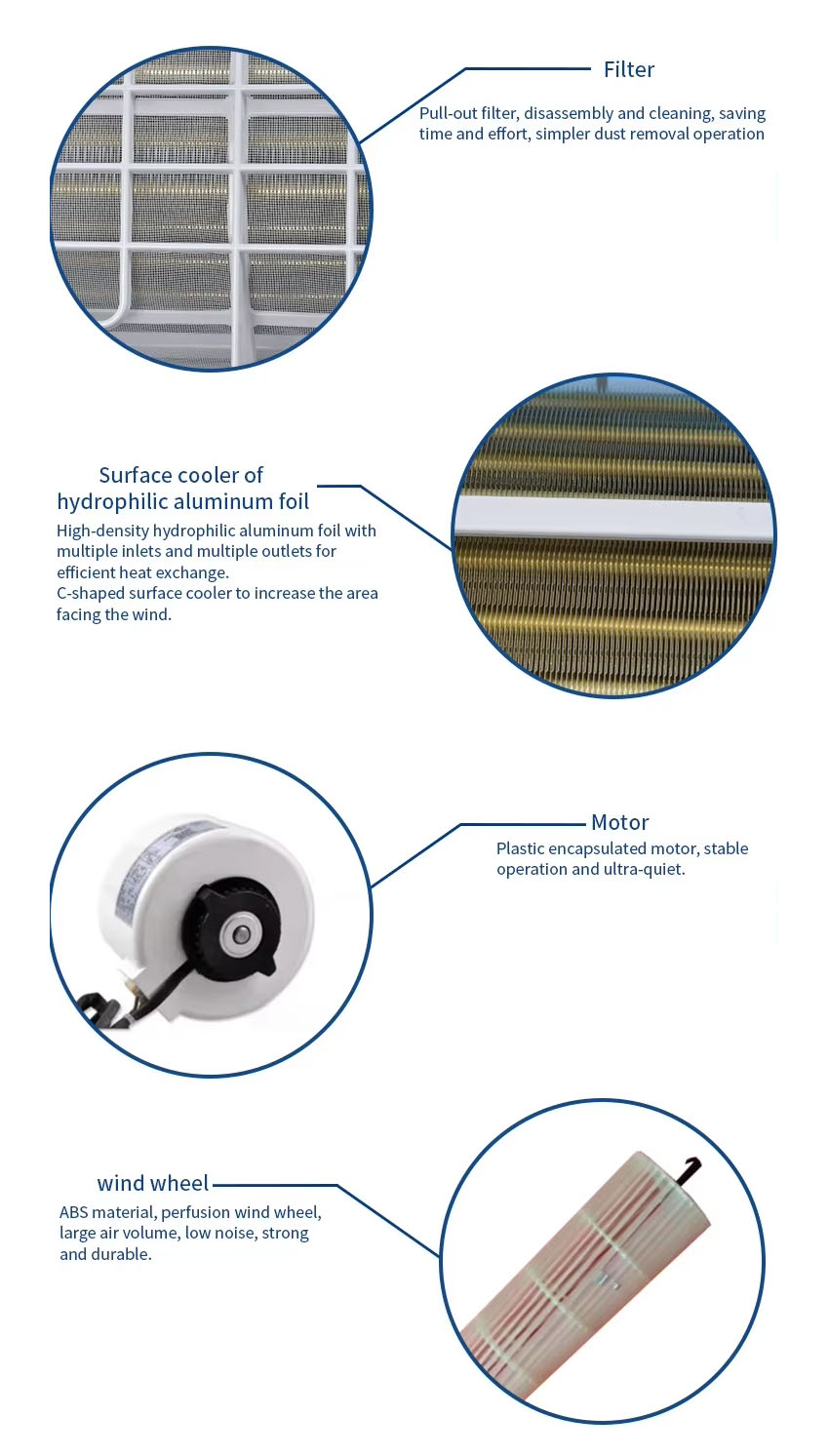

3. The evaporator of the fan coil uses gold heat-dissipating fins
for better heat exchange performance and corrosion resistance.
4. The machine adopts the design of left and right double connecting water pipes,
which is suitable for most installation types.
Model |
GAG- |
3.5FCU |
5.0FCU |
|
Air flow m3/h |
340~680 |
340~680 |
||
Cooling capacity |
W |
3600 |
3600 |
|
BTU |
12283 |
12283 |
||
Heating capacity |
W |
5400 |
5400 |
|
BTU |
18425 |
18425 |
||
Water flow kg/h |
|
|
||
Input Power W |
20 |
20 |
||
Noise level dB(A) |
32~39 |
32~39 |
||
Pressure drop |
12Pa |
|||
Power |
220-240V/1/50Hz or 208-230V/1/60Hz |
|||
Water inlet pipe |
DN20 internal thread |
|||
Water outlet pipe |
DN20 internal thread |
|||
Dimension |
850*265*210 |
850*265*210 |
