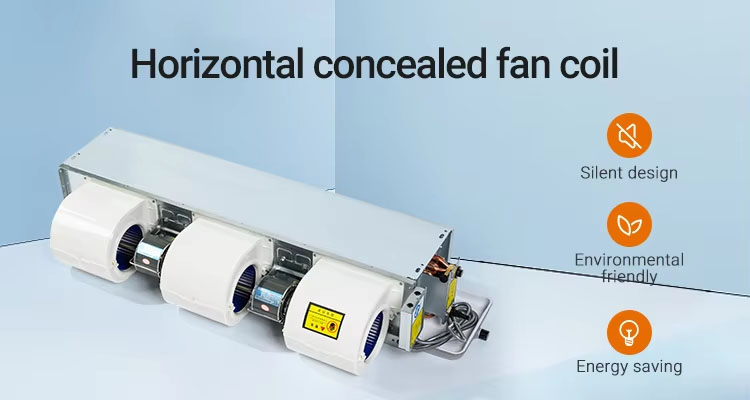

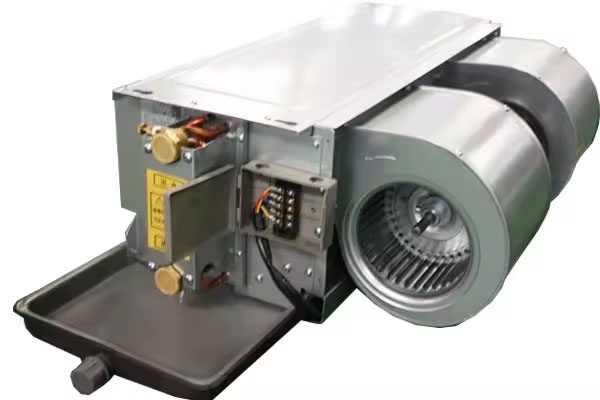

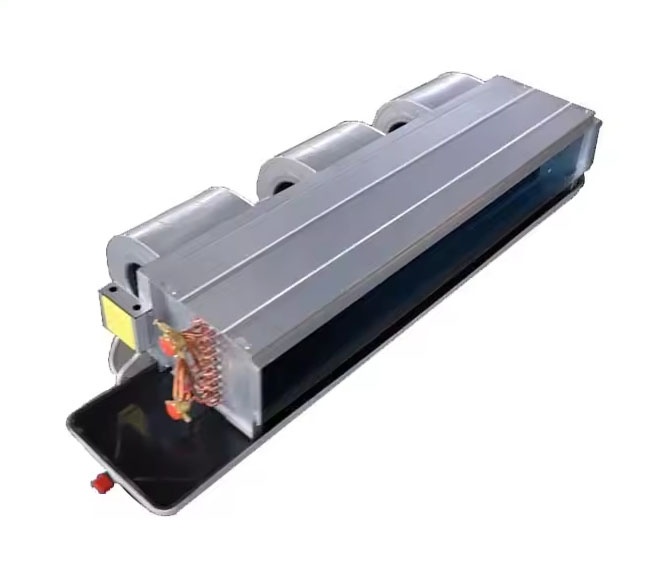

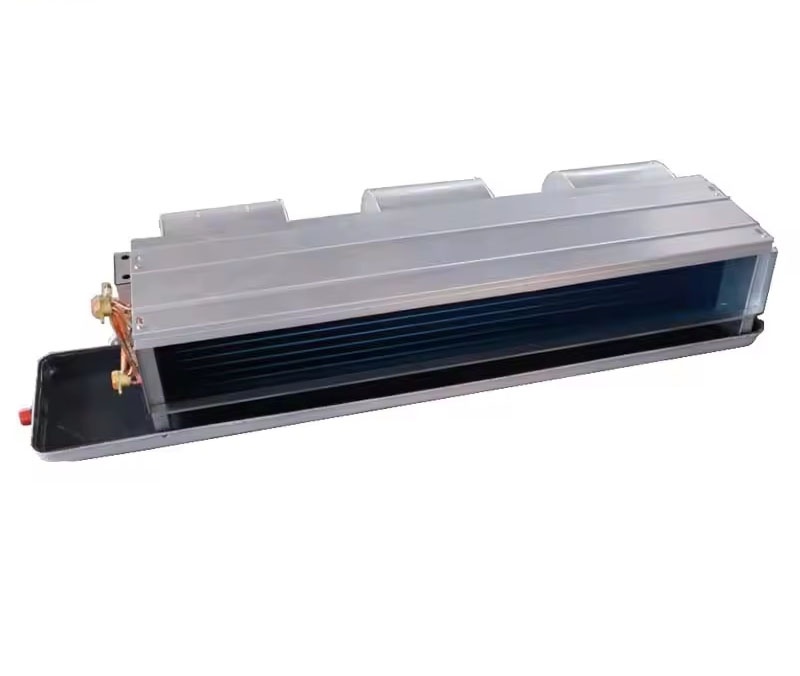

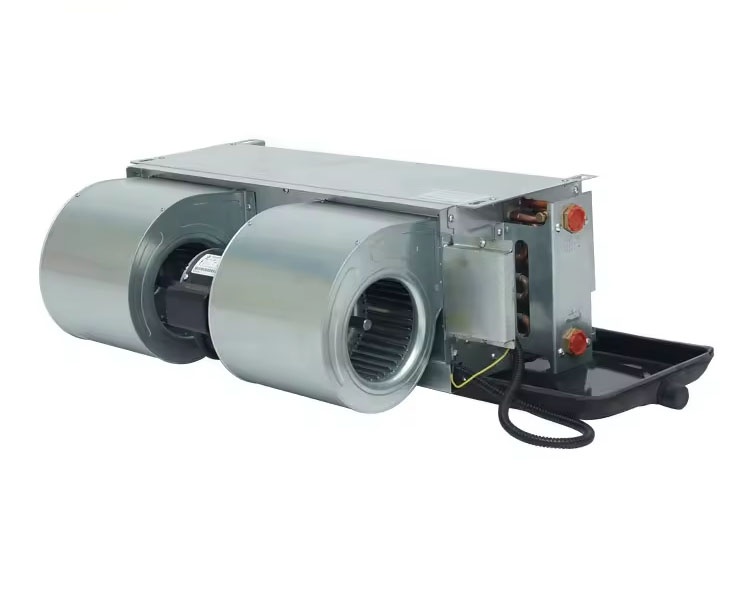

Horizontal Concealed Fan Coil

Product No.：GAG-7.5FCU
Online Inquiry

The fan coil unit is the ideal terminal product of central air conditioning system.

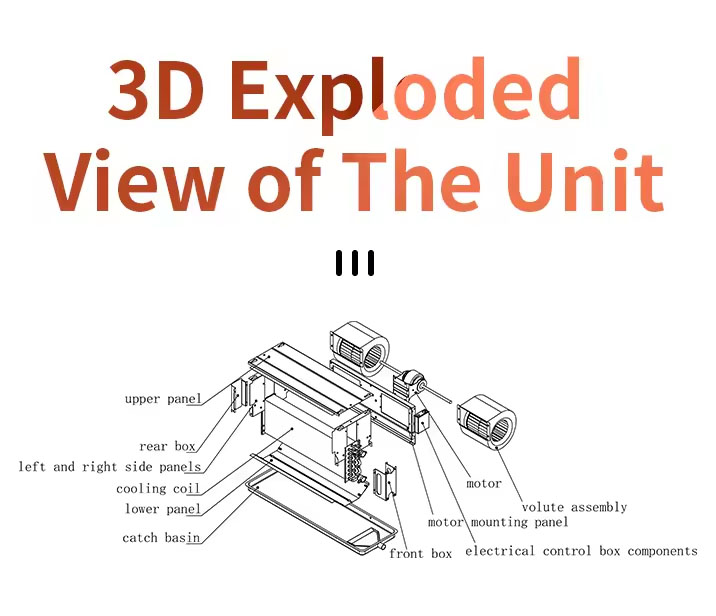

It is consist of heat exchanger, strainer, fan, water pans, exhaust air valve and support.
It is continuously exchanged the central heating or cooling air with indoor air.
To keeping a constant room temperature. It can meet the demands of cooling, heating or humidification,
and then create a fresh, quiet, and warm environment.
Application:
It is widely used in office building, commercial building, restaurant, factory, bank, hospital, market, hotel,and other large
space commercial and civil buildings.

Detail parameters of GAG-7.5FCU consealed fan coil

Model	GAG-		7.5FCU
Air flow(m3/h)	High speed		1360
	Medium speed		1020
	Low speed		680
Cooling capacity	High	W	7758
		BTU	26478
	Medium	W	7350
		BTU	25086
	Low	W	6800
		BTU	23208
Heating capacity	High	W	11997
		BTU	40946
	Medium	W	11000
		BTU	37543
	Low	W	9500
		BTU	32424
Power input			130
Power supply			220V/1ph/50-60Hz
Heat Exchanger	Type		Copper pipes covered into aluminum fins, fin pitch 2.2mm
	Water supply(kg/h)		1200
	Water pressure drop(kPa)		≤40
	Working pressure(MPa)		1.6MPa

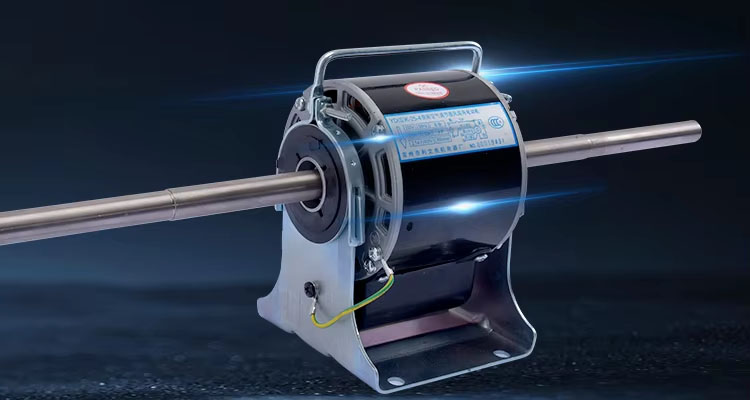

Fan motor quantity			2
Pipe	Inlet/outlet water pipe		3/4 " internal thread
	Condensation water pipe		3/4" external thread
Dimension		L mm	1480
		W mm	500
		H mm	260
Weight		Kg	20
