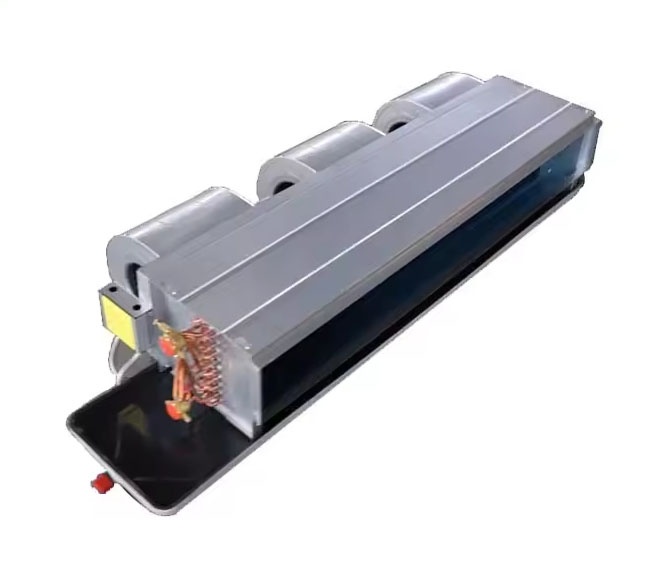

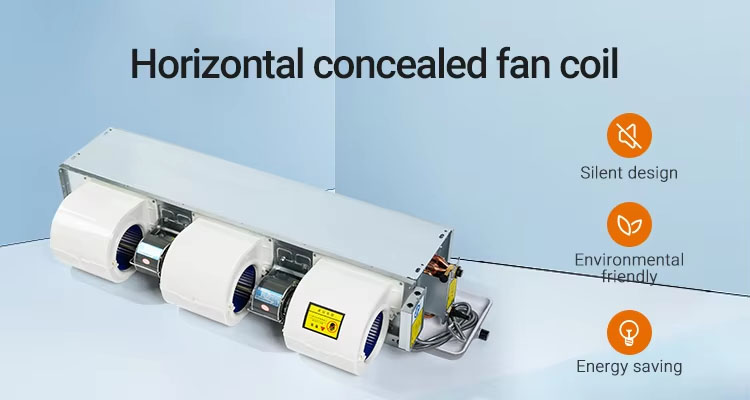

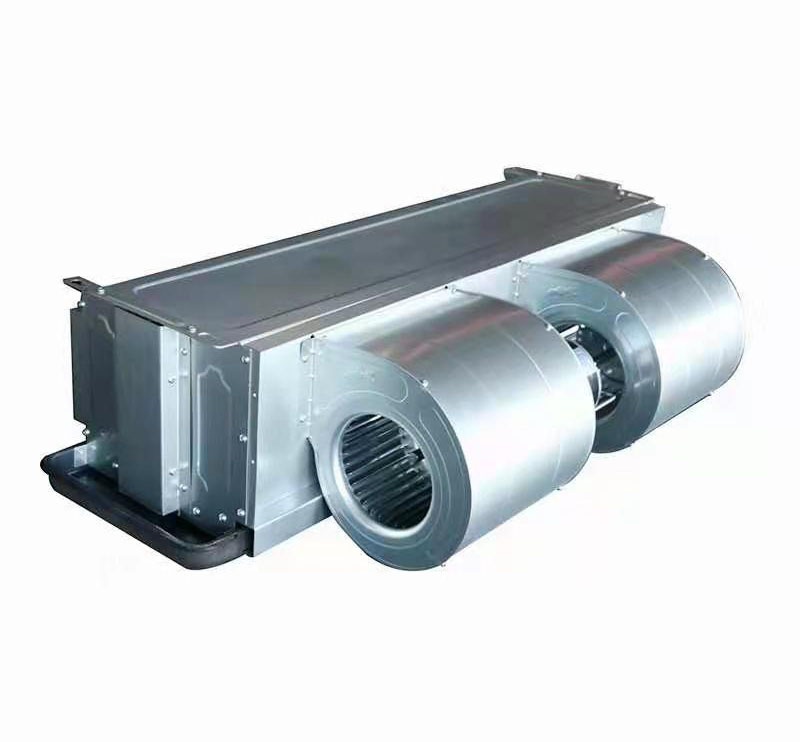

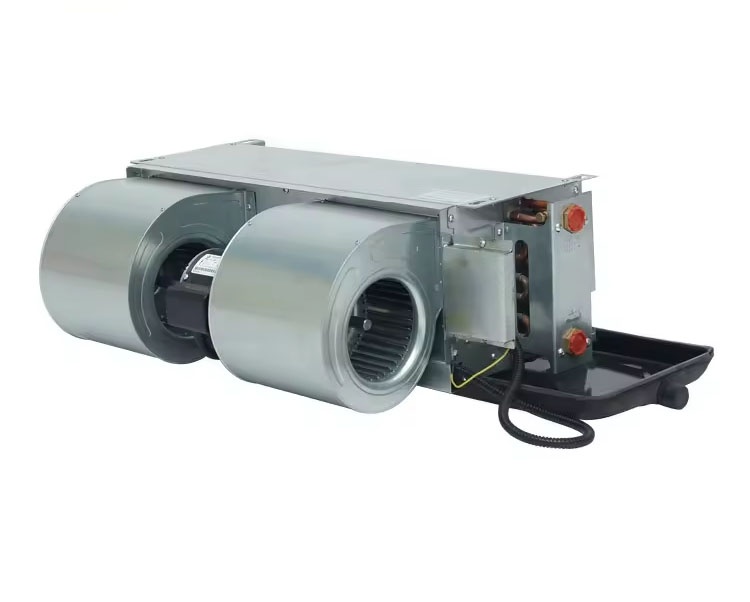

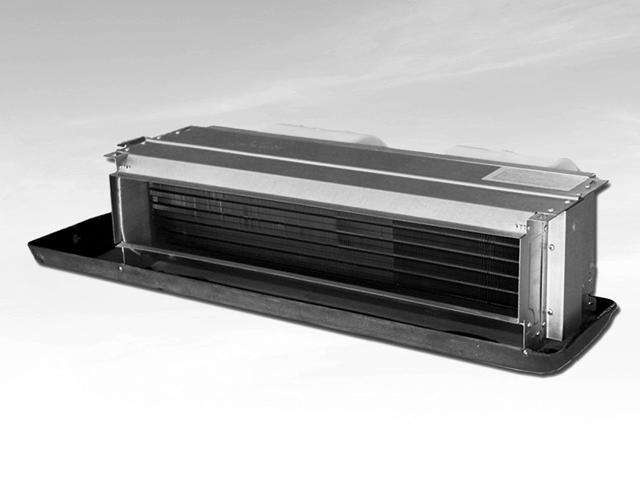

Horizontal Concealed Fan Coil

Product No.：GAG-2.5FCU
Online Inquiry

The fan coil unit is the ideal terminal product of central air conditioning system.

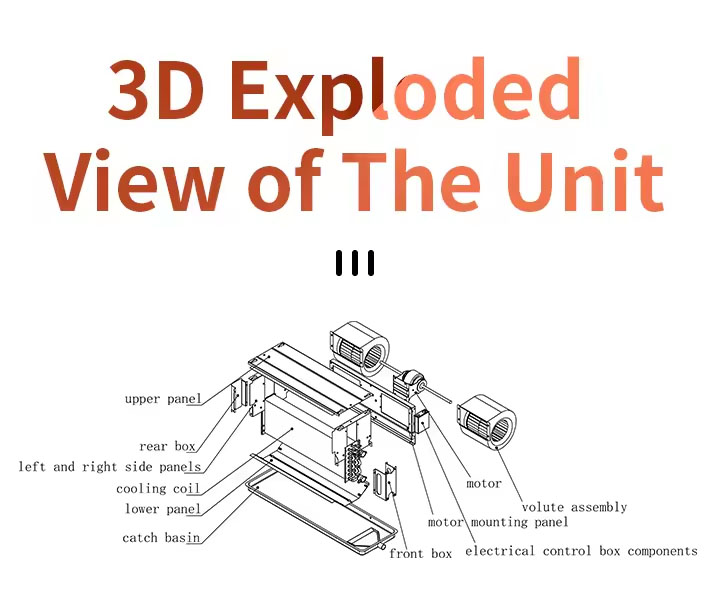

It is consist of heat exchanger, strainer, fan, water pans, exhaust air valve and support.
It is continuously exchanged the central heating or cooling air with indoor air.
To keeping a constant room temperature. It can meet the demands of cooling, heating or humidification,
and then create a fresh, quiet, and warm environment.
Application:
It is widely used in office building, commercial building, restaurant, factory, bank, hospital, market, hotel,and other large
space commercial and civil buildings.

Detail parameters of GAG-2.5FCU consealed fan coil

Model	GAG-		2.5FCU
Air flow(m3/h)	High speed		510
	Medium speed		383
	Low speed		255
Cooling capacity	High	W	2700
		BTU	9215
	Medium	W	2500
		BTU	8533
	Low	W	2300
		BTU	7850
Heating capacity	High	W	4050
		BTU	13823
	Medium	W	3750
		BTU	12799
	Low	W	3500
		BTU	11946
Power input			50
Power supply			220V/1ph/50-60Hz
Heat Exchanger	Type		Copper pipes covered into aluminum fins, fin pitch 2.2mm
	Water supply(kg/h)		475
	Water pressure drop(kPa)		≤30
	Working pressure(MPa)		1.6MPa

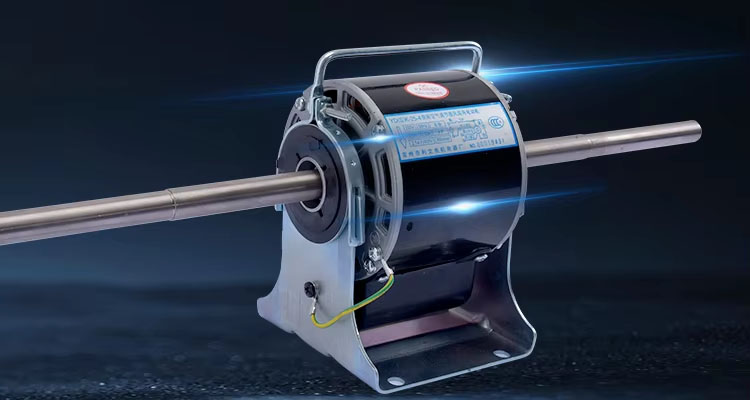

Fan motor quantity			1
Pipe	Inlet/outlet water pipe		3/4 " internal thread
	Condensation water pipe		3/4" external thread
Dimension		L mm	880
		W mm	500
		H mm	260
Weight		Kg	10
