Air cooled water chiller

Product No.：GAG-132H
Online Inquiry

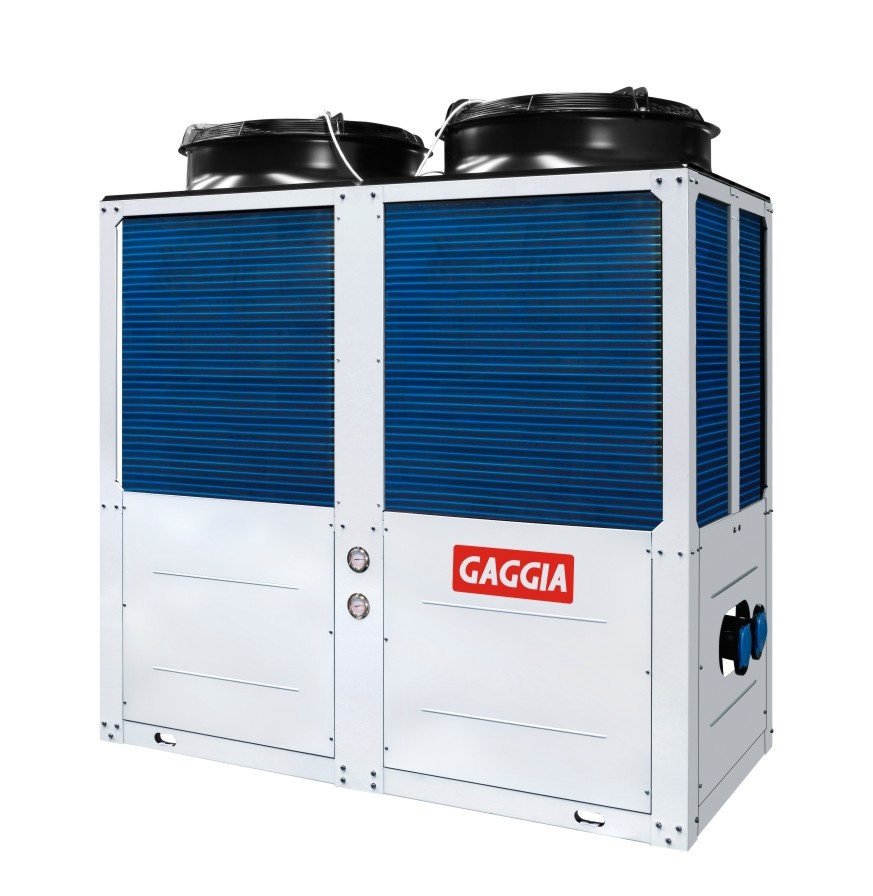

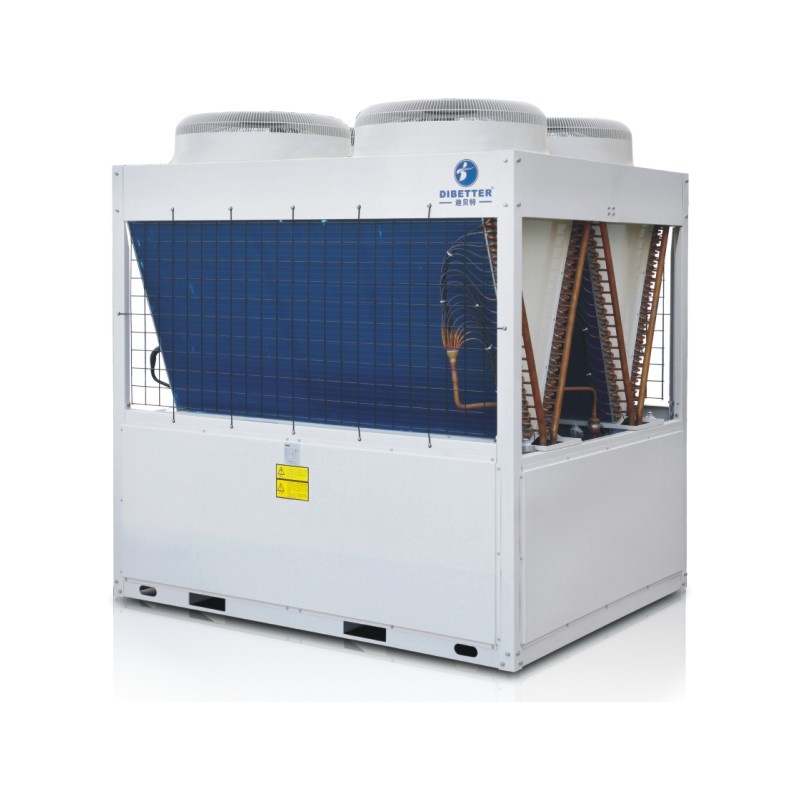

132Kw Air Cooled Industrial Chilled Water Chillers Heat Pump Water Heater Air Cooled Water Chiller

DIBETTER and GAGGIA Air souce heat pump Product features:

1. High effciency and enviroment protection.
2.World famous brand compressor are adopted ( Copeland , HITACHI, Sanyo ), EER up to 5.0, reduce CO2 emission to protect earth.
3.Top quality parts are used, compressor, Sanhua 4-way valva, emerson vave.
4.Multiple protection function: High pressure, low pressur, overheating, overload anti-freezing, phase sequence,discharge temperature, suction temperature and so on.
5.Cooling only or cooling and heating for optional.
6. Heat recoverry function for optional.
7. Wide range for application.

Air cooled water chiller heat pump technical parameter:

Our main products included:

1) Swimming pool heat pump(35-40 degree),55-60 degree is available
2) Air source heat pump(55-60 degree)
3) High temperature heat pump(70-75 degree)
4) EVI type heat pump(Workable at -25 degree)
5) Air cooled water chiller
6) Water cooled water chiller(Water/Ground source heat pump)
7) Multi-function heat pump,etc....
Our advantages : Parts are produced by ourselves & Cabinet size can made as you requested & Delivery time : less than 20 days

Product Parameters

Model	DBT-132.0H
Heating Capcity	kW	136.00
Heating Capcity Input	kW	22.0*2
COP	W/W	3.10
Power supply	V/Ph/Hz	380/3/50~60
Dimensions	mm	20002001975
Net/Gross weight	kg	1560/1760

PRODUCT FEATURES

Compressor	COPELAND,SANYO or HITACHI are used, reliable quality with high performance.
Constant hot water	Patent technlogy to provided high Hot water(75~80 degree) with high COP.
REFRIGERANT: R407C&R410A	High Efficiency and environment protection
MODULAR DESIGN	This unit series use the concept of modular design, The basic modular unit can operates alone, or 1-7 basic modular units can be assembled to an
FULLY-AUTOMATIC CONTROL	The operation and management of this unit are controlled by microcomputer system. It is easy to operate so that the professional management personnel are unnecessary. And there are complete protect functions such as error self-detect system, balancing the compressor wear automatically, and anti-freezing automatically in winter.
INTELLIGENT DEFROSTING	Each modular is separate to the others at inner cooling system, and controls the operation of the system independently. And the defrosting has no significant influence to the indoor air-conditioning temperature.
INTELLIGENT ANTI-FREEZING	This unit adopts anti-freezing automatic dual-class protection, preventing the water system be damaged once the refrigerant freezing at winter. The anti-freezing protection can be quitted automaticly when the water temperature is increased according to the operation of heating or pump.
