Products >> Air cooled water chiller >>

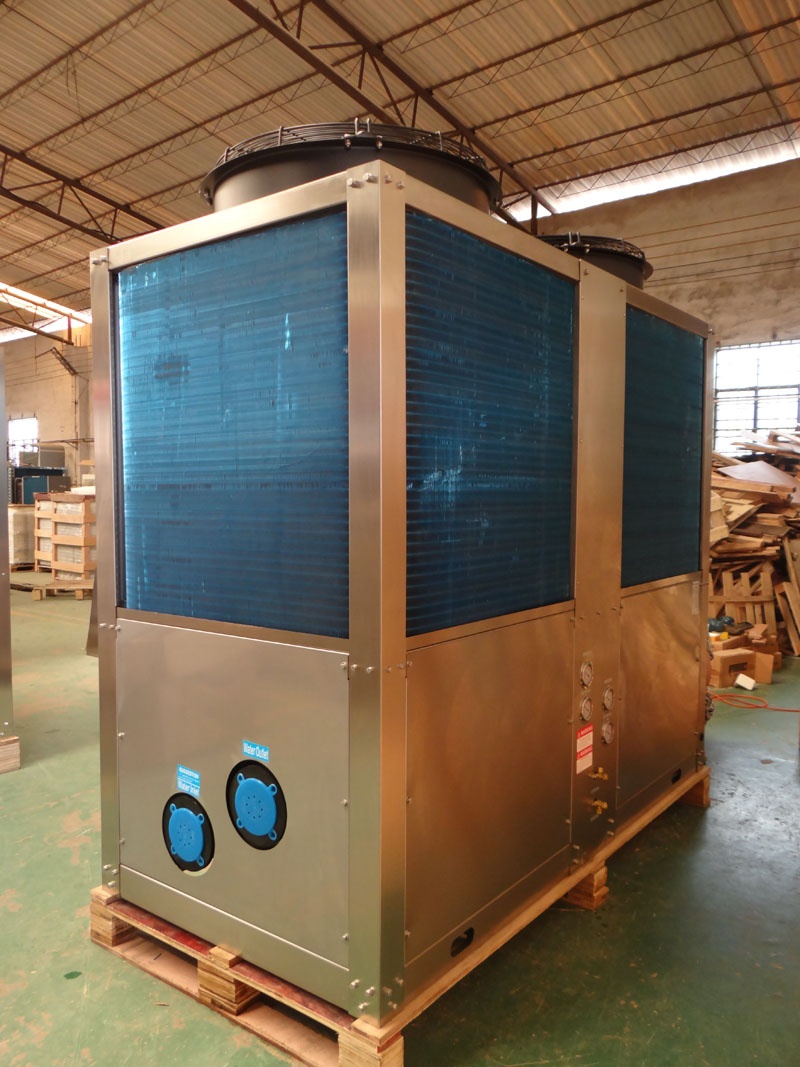

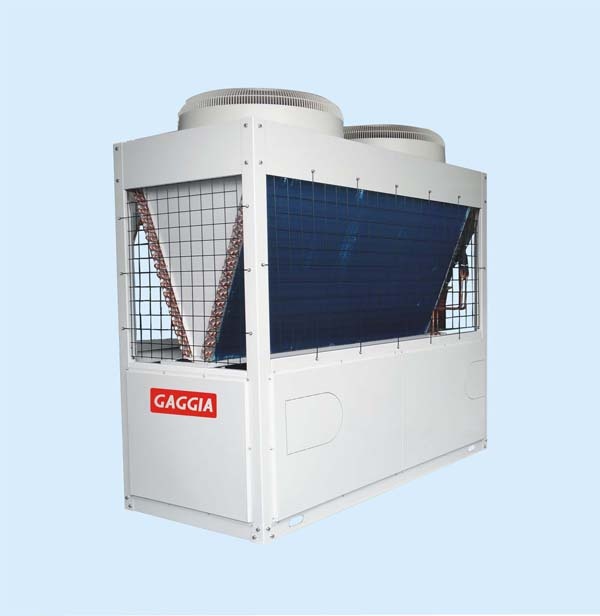

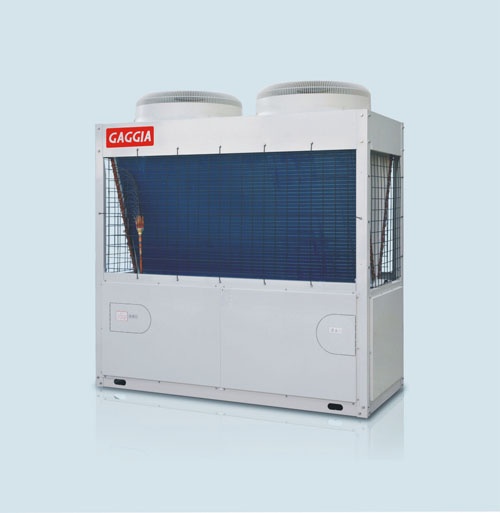

Air cooled water chiller

Product No.：GAG-66H
Online Inquiry

Air Water HeaterNew Energy Heat Pump Chiller Cool Stable Smart Hot Water Heater air cooled air conditioner chiller

Product Description

Model	GAG-66.0H
Heating Capcity(kW)	68.0
COP(W/W)	3.10
Power supply(V/Ph/Hz)	380/3/50~60
Dimensions(mm)	200010051975
Net/Gross weight(Kg)	780/880

Product Details

Safety: water and electric separately.

Anti-corrosion: plastic case, coated steel or sus304# stainless steel case are available.

World famous brand compressor, 4-way valve, motor, PCB, titanium heat ex-changer,Emerson ALCO expansion valve used to ensure top quality an high efficiency(cop more than 6.0).

Convenient: intelligent microprocessor with touch screen display. trouble shoot shows on display board automatically.

World famous brand compressor, 4-way valve, motor, PCB, heat ex-changer, Emerson ALCO expansion valve used to ensure top quality an high efficiency(energy-saving as much as 75%).

Multiple protection function: high pressure, low pressure, overheating, overload anti-freezing, phase sequence, discharge temperature, suction temperature and so on.

All weather operation: stable operation without being influenced by weather.

Refrigerant of R22, R407c, R134a R32 are for optional.

Automatically defrosting function included.

Product Working Principle

Product Features

REFRIGERANT	Use green refrigerant R22 & R32 & R407C & R410A High Efficiency and environment protection
MODULAR DESIGN	This unit series use the concept of modular design, The basic modular unit can operates alone, or 1-7 basic modular units can be assembled to an integranted unit according to the requiring capacity.
FULLY-AUTOMATIC CONTROL	The operation and management of this unit are controlled by microcomputer system. It is easy to operate so that the professional management personnel are unnecessary. And there are complete protect functions such as error self-detect system, balancing the compressor wear automatically, and anti-freezing automatically in winter.
INTELLIGENT DEFROSTING	Each modular is separate to the others at inner cooling system, and controls the operation of the system independently. And the defrosting has no significant influence to the indoor air-conditioning temperature.
INTELLIGENT ANTI-FREEZING	This unit adopts anti-freezing automatic dual-class protection, preventing the water system be damaged once the refrigerant freezing at winter. The anti-freezing protection can be quitted automaticly when the water temperature is increased according to the operation of heating or pump.
