Heat exchanger for air conditioner&heat pump

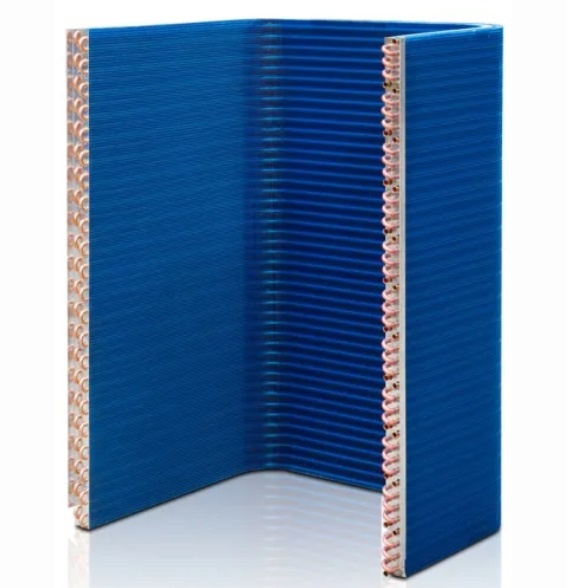

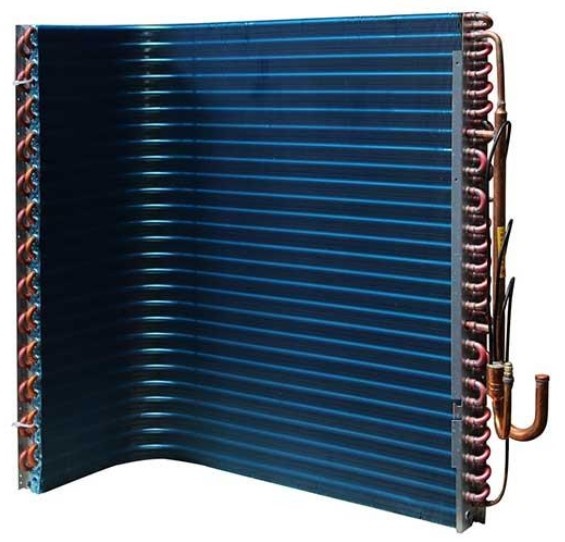

 Tube fin cooling coil heat exchanger

Sorted according to ventilation mode:

1. Blowing-type: Tube banks lie in the exhaust side of the blower

2. Draught fan: Tube banks lie in the inlet side of the blower Sorted according to the installation and placing modes of the tube banks:

1. Horizontal type: Horizontally place the tube banks

2. Inclined type: Inclined place the two tube banks with the horizontal plane in 60 degree dip angle

3. Vertical type: The tube banks are vertically placed on both sides of the structure.



Air to air heat exchanger with Inner groove copper pipe,hydrophlic aluminium with 1.5 to 2.3mm gap

Copper pipe Alumium  Side plate(Alumium )
Diameter(mm) Thickness(mm) Type Thickness(mm) Thickness(mm)
7~12.7 0.1~1 Hydrophlic 0.1~1 1~1.5
