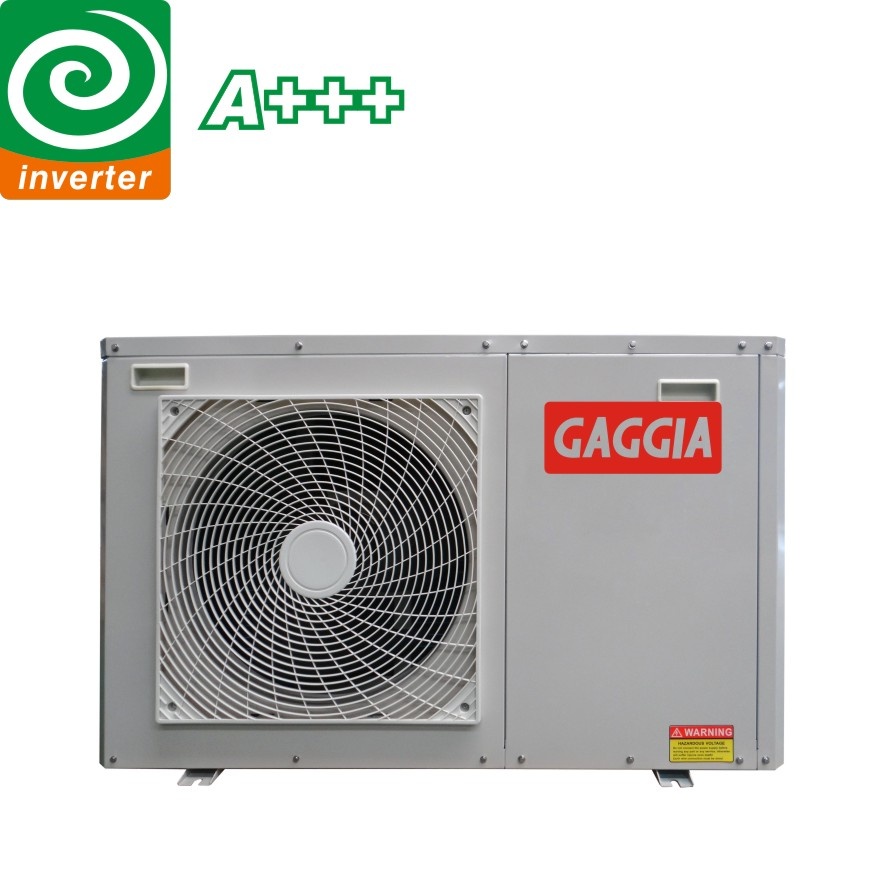

12KW R410a DC Inverter Heat pump

Product No.：GAG-12DC
Online Inquiry

Product Details

DC Inverter Heat Pump Water Heater Air Source (R32/16KW) Air To Water Heat Pumps

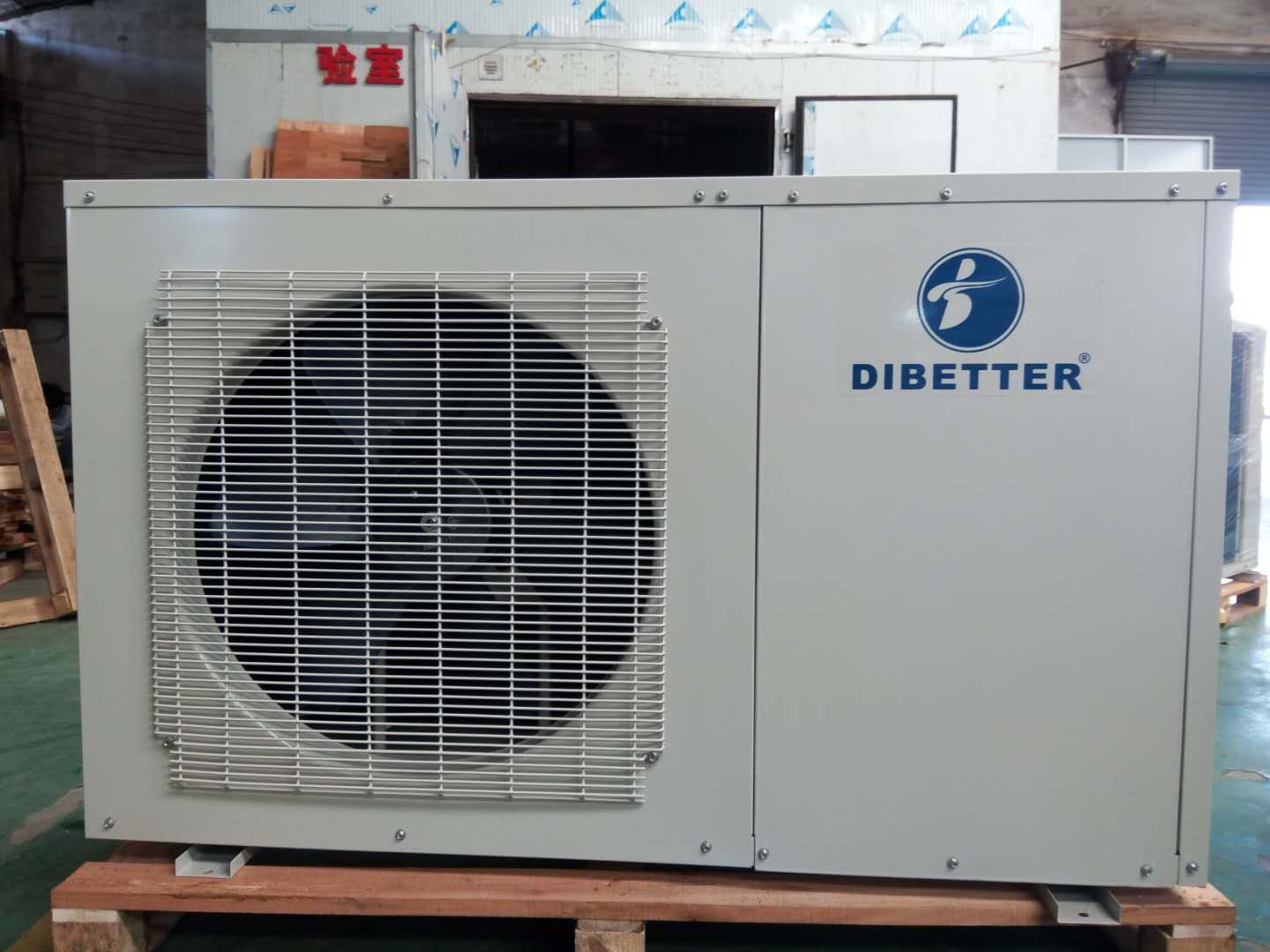

DIBETTER/GAGGIA DC inverter heat pump can provide house heating,cooling,domestic hot water.
With advance DC inverter technology,it can save 30% energy compared to normal heating way.It is
equipped with variable fan speed,working frequency can change according to the heat demand.It is
best way for house heating.

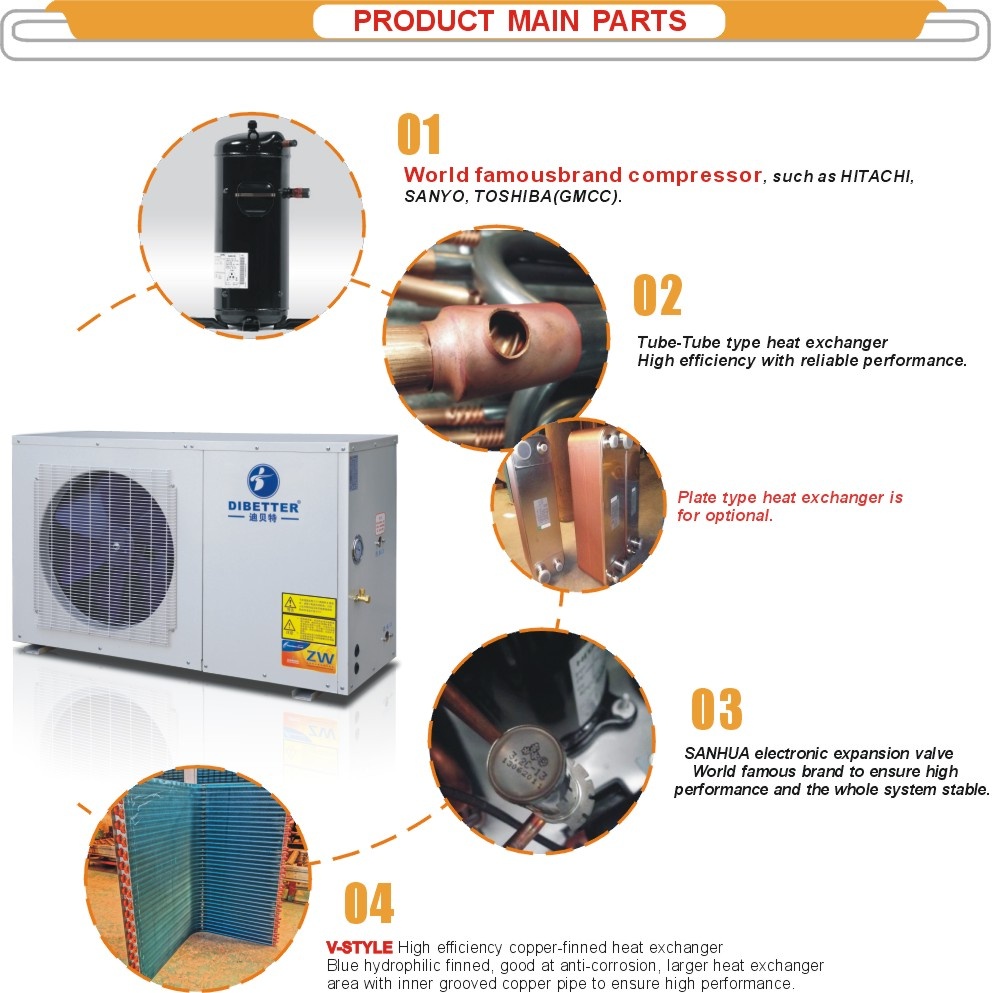

DIBETTER/GAGGIA DC Inverter heat pump advantages:

1) A+++ COP
2) DC inverter wilo water pump
3) EC Fan motor
4) Included safety valve
5) Included expansion tank
6) Included water flow detector
7) Wifi control function

Product Asvantages

Product Parameters

Technical parameters		DBT-12DC
Heating-1(7/6℃,30/35℃)	Rated capacity	kW	11.7
	Power input	kW	2.65
	COP	W/W	4.42
Cooling-2(35/24℃,12/7℃)	Rated capacity	kW	8.7
	Power input	kW	3.2
	EER	W/W	2.72
Power source		V/Ph/Hz	220-240/1/50
Compressor type			Twin rotary
Refrigerant			R32
Max current		A	17
Max power input		kW	3.55
Max working pressure		Bar	42
Water proof			IPx4
Max output water temp.		℃	60
Max water pressure		Bar	3
Water pipe size		Inches	1
Drain water pipe size		mm	15
Rated water volume		m³/Hour	1.9
Dimensions		mm(HxWxL)	970x425x1115
Net weight/Gross weight		kg	125/145
