Heat pump controller
- Product No.:2021624162016
1 |

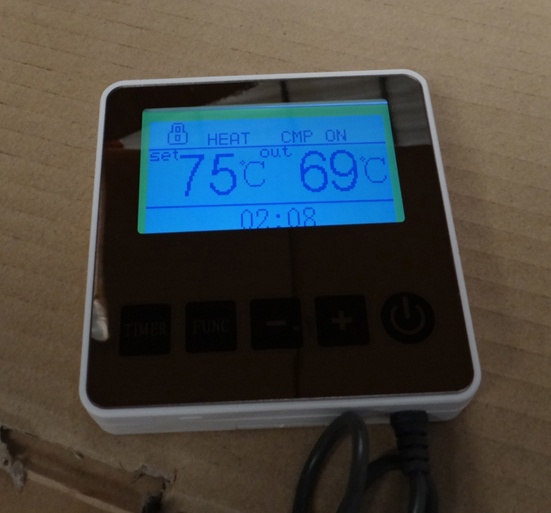

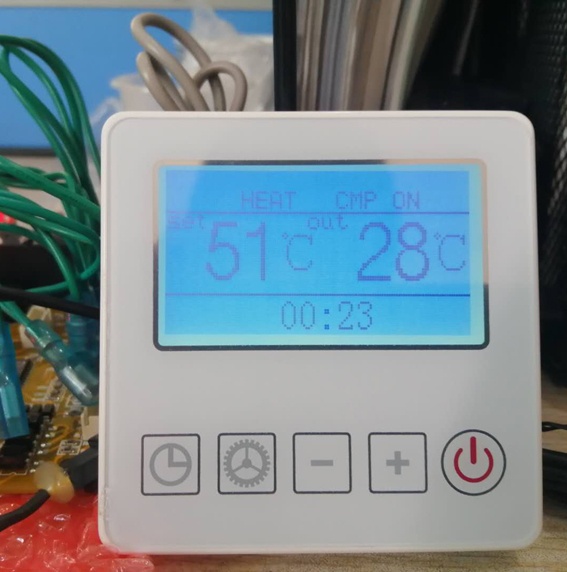

With touch key LCD display , quick parameter setting, easy operation |
|||
2 |
Intelligent defrost control mode, more stable and energy saving |
|||
3 |
Power off memory function |
|||
4 |
EEV control function |
|||
5 |
Working modes: Heating mode |
|||
6 |
With three phase function |
|||
7 |
Low and high temperature heat pump control with EVI control |
|||
8 |
Ten way control output |
Compressor |
Cycle water pump |
Fan motor |
Electrical heater |
4-way-valve |
Crank heater |
||
Solenoid valve A |
Cold water replenishing valve |
Return water pump |
||
9 |
Sensor input: |
Water temperature sensor |
Coil temperature sensor |
Climate temperature sensor |
Return water temperature sensor |
Outlet water temperature sensor |
Exhaust temperature sensor |
||
Suction temperature sensor |
|
- |
||
10 |
Switch input: |
Compressor high pressure switch |
Compressor low pressure switch |
Water flow switch |
Water high level switch |
Water low level switch |
Water pressure switch |
² Technical parameters:
Measuring range |
-30°C~99°C |
|
Controlling range |
-30°C~99°C; |
|
Accuracy |
-30°C~50°C,±1°C±0.5dig; others, ±2°C±0.5dig |
|
Mounting size |
173×104×25mm |
|
Power supply |
380V or 220±10%(VAC), 50/60Hz |
|
Power consumption |
<12W |
|
Storage temperature |
-25°C~50°C |
|
Senor type |
NTC(10KΩ/25°C,B value) |
|
Relay output capacity |
Compressor |
20A/250VAC |
Electrical heater |
20A/250VAC |
|
Others |
5A/250VAC |
|

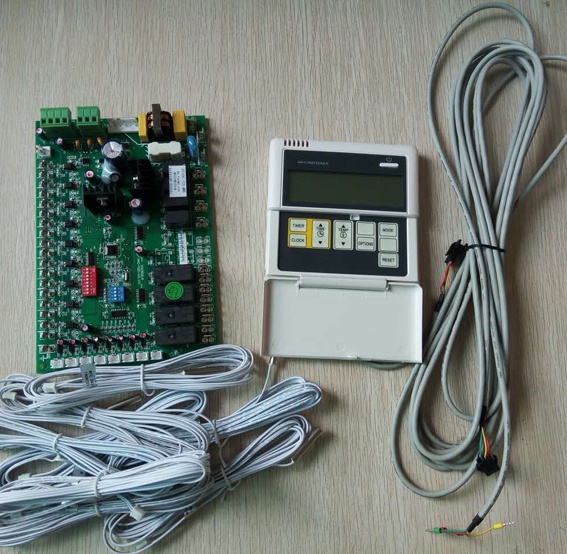

Product list |
Main board (1pcs) |
|
LCD display(1pcs) |
||
Connect wire(1pcs) |
||
Transformer(1pcs) |
||
Temp. sensor(5~9pcs) |
